SEMA 2017: Baer Brake Systems Residual Pressure Valve

For those of us who upgrade our front brakes but maintain our rear drum brakes, a few kinks in the brake system can emerge. Luckily, our friends at Baer have recently addressed this.

Official Release:

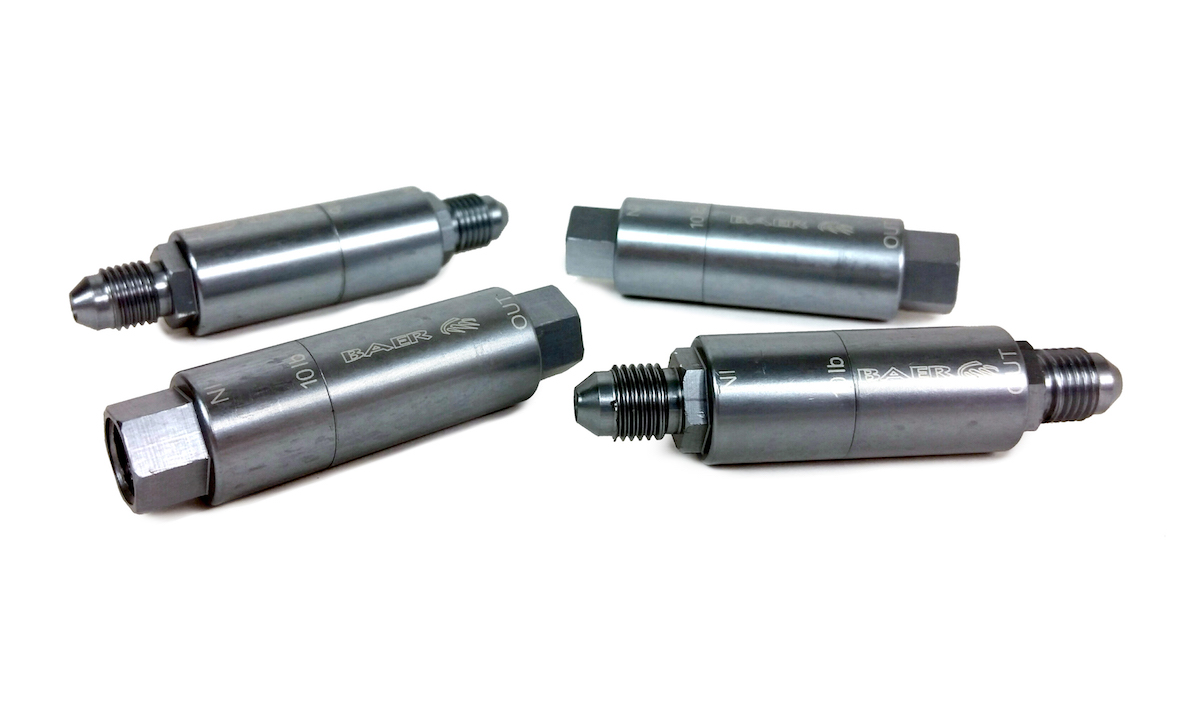

Baer Brake Systems Residual Pressure Valve

 Las Vegas – Baer Brake Systems continues to expand product offerings by introducing the new Residual Pressure Valves.  These valves are available in a 2-lb, and 10-lb configuration, and are designed to retain a minimum brake line pressure in applications such as drum brakes or where master cylinders are mounted below the centerline of the brake caliper.

Part #                         Description                                            Price/MAP

6805145    Residual Pressure Valve 10#, -3AN Male                 $25.95

6805146    Residual Pressure Valve 10#, 3/8” IF Female           $25.95

6805147    Residual Pressure Valve 2#, -3AN Male                   $25.95

6805148    Residual Pressure Valve 2#, 3/8” IF Female             $25.95

Features:

  • A simple and effective way to retain a minimum brake line pressure
  • Machined aluminum body, laser etched
  • Made in the USA
  • Available in 2lb and 10lb
  • Available in 3/8” IF Female, or -3AN male ends
